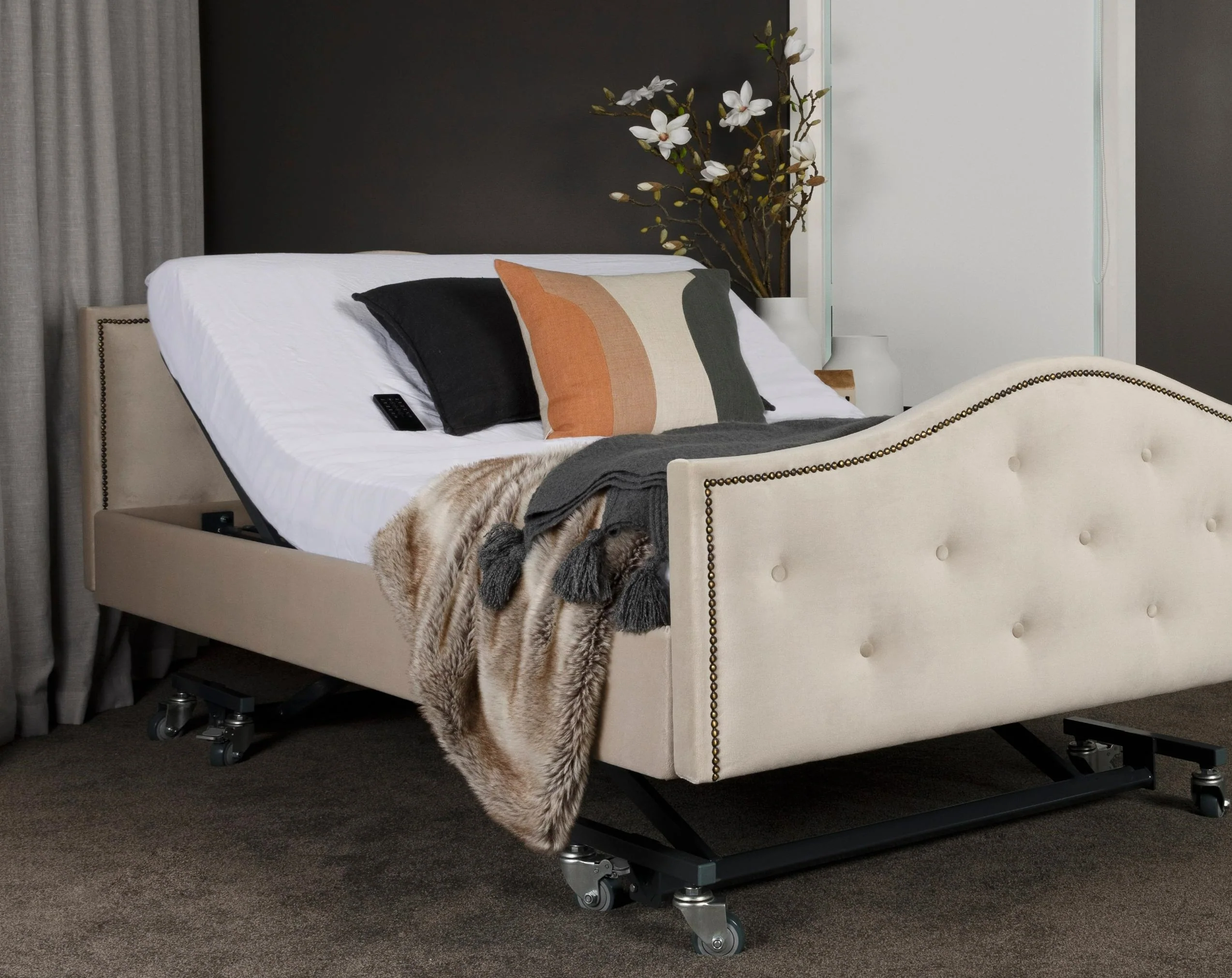

MediSleep IC777 - Hi-Lo Adjustable Base

FUNCTIONS

• Head Elevation
• Foot Elevation
• Hi-Lo Height Adjustability
• Trendelenburg Tilt
• Zero-Gravity
• Memory Setting

FEATURES

• Hoist Access
• Battery Back-Up
• Wireless Backlit Remote
• Breathable Mattress Platform
• End and Corner Mattress Keeper Bars
• 10-Year Warranty

AVAILABLE ADD-ONS

• Companion Base (non-powered)
• Bed Stick
• U-Assist Rail
• Low Side Rail
• High Side Rail
• Extendable Rail

*Mattress, headboard and footboard pictured are sold separately.

SPECIFICATIONS

Min Height: 21cm | Max Height: 66cm
(from floor to top of mattress platform).

Head and Foot Elevation:
Head lift angle 62° and knee break angle 42°.

Safe Working Load:
200kg for L/S and K/S, 300kg for Long Double and Queen sizes.

Actuators:
No pull motors for added safety.
1x 6000 newton - 24 watt head adjust actuator.
1x 6000 newton - 24 watt knee adjust actuator.
2x 6000 newton - 24 watt height adjust actuators
(2x 8000 newton on Double and Queen sizes).

Wheels:
8x Heavy duty swivel castors, with one lockable castor on each corner.

DIMENSIONS

Long Single
Base: 960 x 2150mm | Mattress Surface: 900 x 2030mm
King Single
Base: 1120 x 2150mm | Mattress Surface: 1070 x 2030mm
Long Double
Base: 1400 x 2150mm | Mattress Surface: 1350 x 2030mm
Queen
Base: 1580 x 2150mm | Mattress Surface: 1520 x 2030mm
Split King
Base: 1920 x 2150mm | Mattress Surface: 1800 x 2030mm
